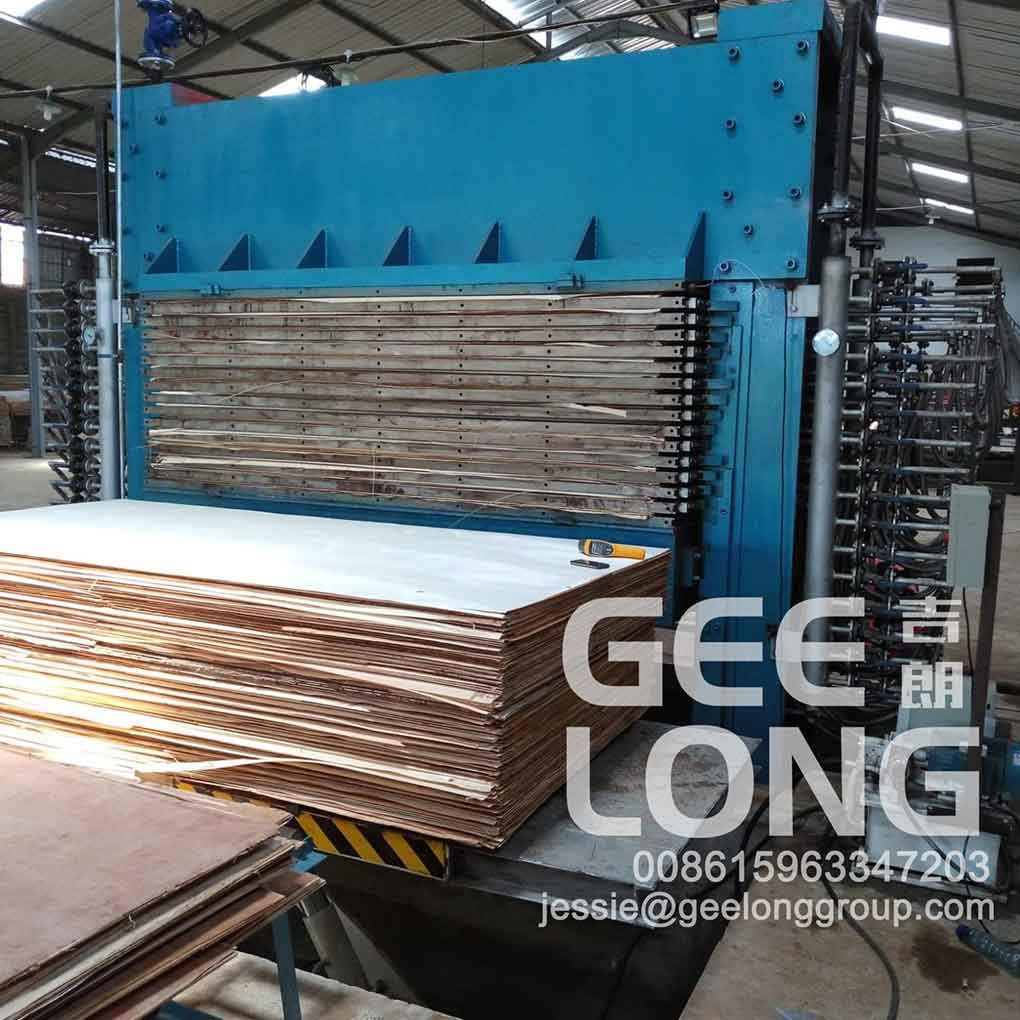

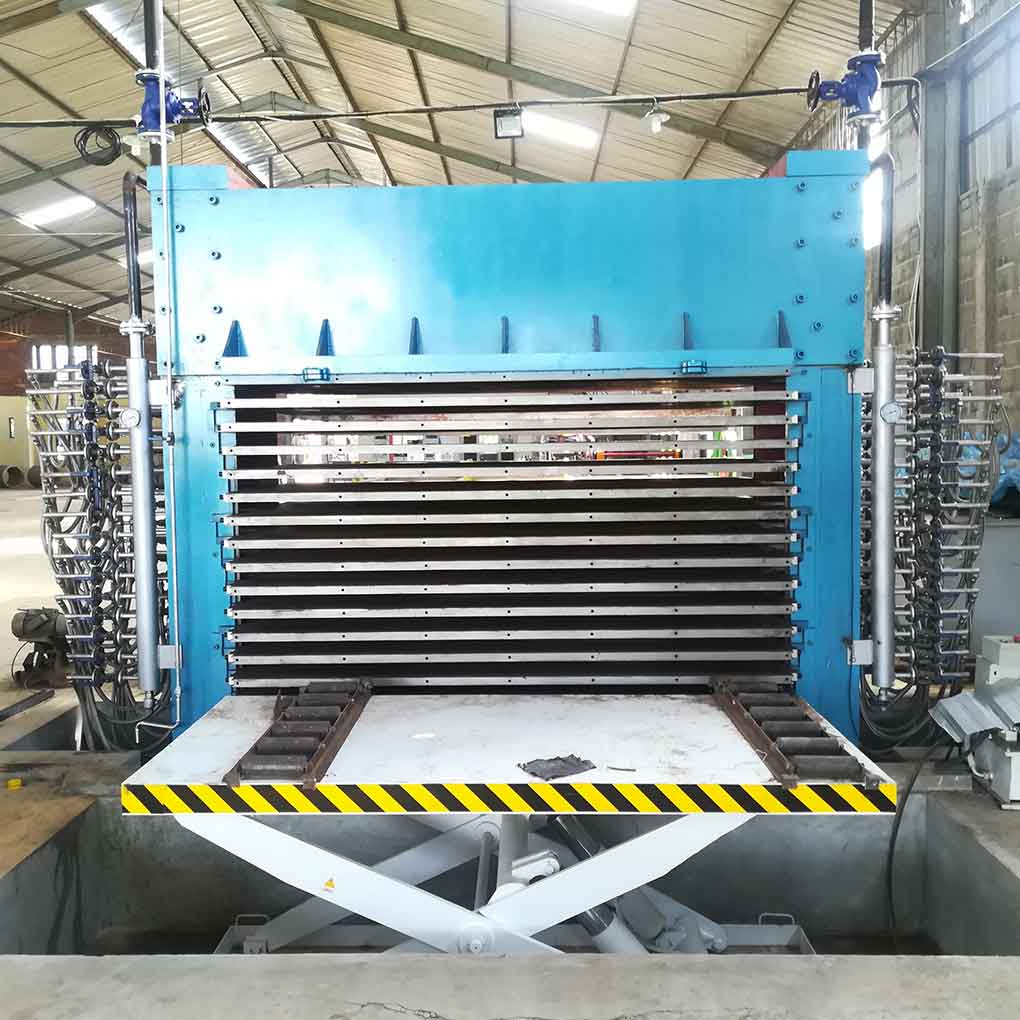

Plywood 500T 15layers Hot Press Machine

Plywood hot press machine is one of the main equipment in the plywood production process. It is the equipment for hot pressing of the board slab after the glue combination

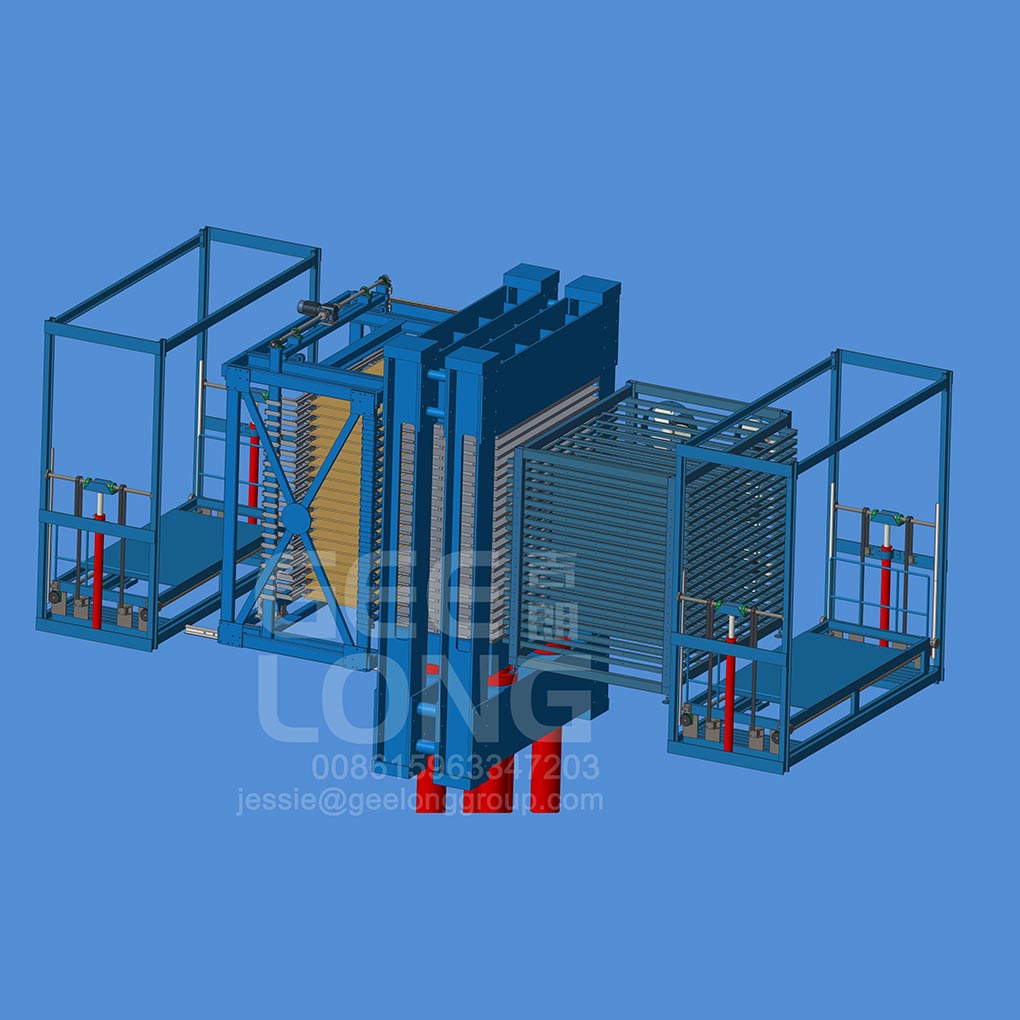

Plywood hot press machine is one of the main equipment in the plywood production process. It is the equipment for hot pressing of the board slab after the glue combination. The different types of plywood has different requirements on the performance off the press: ordinary plywood, plastic panel,wood laminated plastic board and ship plywood are required to increase the pressure in turn. It consists of three parts: the hot press main machine, the control drive part(hydraulic system and electric control system),and the heating system.


Specification:


normal pressure: 500TDirection of boards inlet: transverseLayers:15
Opening distance:70mmQuantity of hot platens: 16Size of hot platen: 1370x2700x42mm
Hot platen inside pipeline: two inlet and two outletQuantity of cylinders: 2pcsDiameter of main cylinders:360mm
Working stroke of cylinders: 1050mmAllowed pressure: <=25MpaClosing time of no-loading:11seconds
Flow of low pressure pump:280x1pcsAllowed pressure: 3MpaPower motor: 15kwx1sets
Flow of high pressure pump: 25x1pcsFlow of high pressure pump: 25x1pcsFlow of high pressure pump: 25x1pcs
Power of motor: 5.5kwx1setAllowed pressure: 25MpaDimension: 3700x1370x4960mm
Thickness of up and down colume: 900mmControlling methods: automatic hydraulic stationsMain steel plate thickness: 35mm
Heating medium: thermal oilMain steel plate thickness: 35mmTotal weight of this machine: 33T


Features:

1. The main frame is cut by good quality no. 1 standard steel plate,gantry frame structue,strong rigidity and ensure high pressure,divided into welding frame type and bolts connected combined type.

2. Micro-computer control system is made by good quality hydraulic nit,fast press,accurate press,high efficiency.

3. The steam system is designed as a “double inlets and double outlets” arrangement to ensure even temperauture distribution.

4. Automatic electrical controlling,easy&reliable operation,automatic temperature module,and time controlling module,multi production process technology pressure keeping system,control and ensure high quality board.

5. The electricity components are imported brand Schneider and domestic famous brand CHNT.The motor can be Siemens.

Pressure,cylinder,hot platen size and so on can be customized to clients different requirement.
